May 2001

The synth.


May 2001

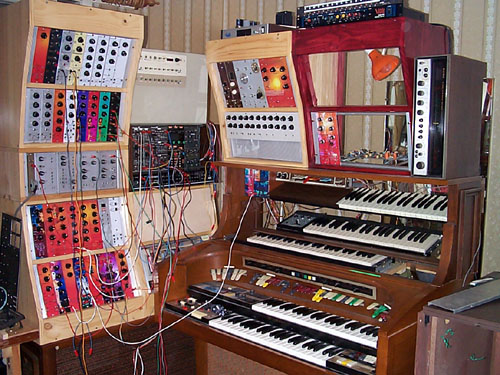

The synth as it is at the moment. I turned it around. There is a walkway around behind it to allow access to rear of it all. Yes - five keyboards! The mostly empty rack is the ASM-1. I still need to add controls for most of the modules.

May 2001

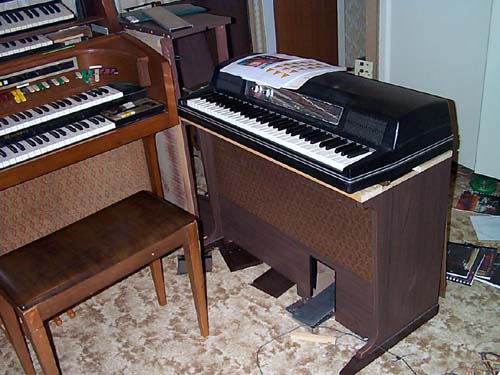

This view shows the Wurlitzer electric piano. I do have its legs, but it is a lot more convenient to have it sitting on the speakers. The Speaker box is what remains of a Welson organ I bought for $30.

May 2001

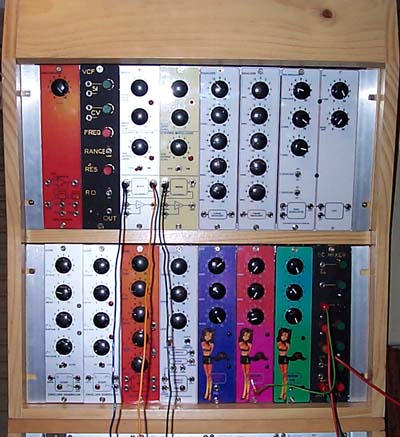

Upper rack, left. VCAs, mixers, envelope generators, Psycho LFOs, filters, equalizers.

May 2001

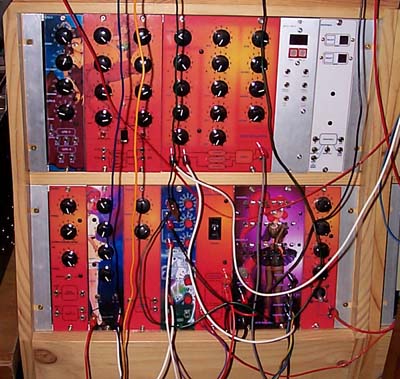

Lower rack, left. LFO, Sub oscillators, wavetables, engine sounds, flanger, phaser, vocal filter, organ interface, gate sequencer, joystick.

May 2001

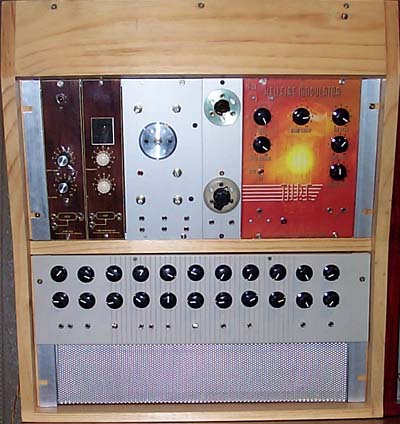

Tube Synth! Upper: VCA, VCF, beam modulator and VCAs, beam modulator, Hellfire clone. Lower: 2 x VCO, 2 x HFM, beam modulator, VCF.
